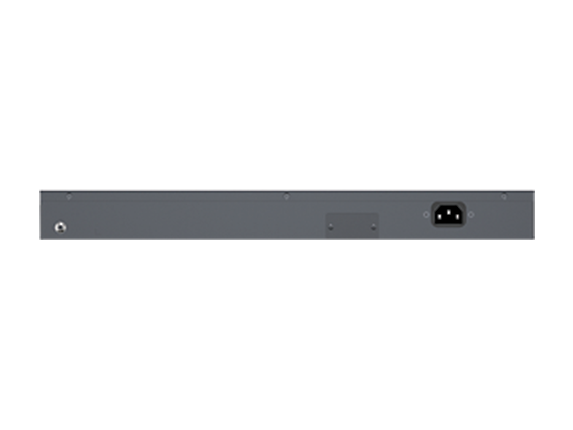

Aruba 2620 24 PoE+ Switch

Part № : J9625AR

RENEW Part № : J9625AR

Availability : Call

  • Description
  • Specification
The Aruba 2620 Switch Series consists of five switches with 10/100 connectivity. The 2620-24 Switch has a fan-less design for quiet operation, making it suitable for deployments in open spaces. The models 2620-24-PPoE+, 2620-24-PoE+ models, and 2620-48-PoE+ are IEEE 802.3af- and IEEE 802.3at-compliant switches that provide up to 30 W per powered port. The 2620–48 model has variable-speed fans for quiet operation.

All 2620 switches include two 10/100/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure.

With IPv4/IPv6 static and RIP routing, robust security and management features, as well as Limited Lifetime Warranty and included software updates, the 2620 Switch Series is a cost-effective solution for those building converged enterprise-edge networks.

QuickSpecs

HPE Quickspecs Open Link

Generic

I/O ports and slots 24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full
2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 open mini-GBIC (SFP) slots
Additional ports and slots s 1 RJ-45 serial console port
Physical characteristics
Dimensions 17.44(w) x 14.5(d) x 1.73(h) in (44.3 x 36.83 x 4.39 cm) (1U height)
Weight 10.67 lb (4.84 kg) shipping weight
Memory and processor
Processor Power PC FreeScale 8313 @ 400 MHz, 512 MB flash; Packet buffer size:
1 MB, 512 MB SDRAM, 4 MB flash ROM
Mounting and enclosure Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only
Performance
IPv6 Ready certified
100 Mbps Latency < 8.3 µs (LIFO
1000 Mbps Latency < 2.9 µs (LIFO)
Throughput up to 9.5 Mpps
Routing/Switching capacity 12.8 Gbps
MAC address table size 16000 entries
Environment
Operating temperature 32°F to 131°F (0°C to 55°C)
Operating relative humidity 15% to 95%, noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 95%, noncondensing
Altitude up to 10,000 ft (3 km)
Acoustic Power: 34.0 dB, Pressure: 25.3 dB
Electrical characteristics
Achieved Miercom Certified Green Award
Frequency 50/60Hz
Maximum heat dissipation 270 BTU/hr (284.85 kJ/hr), (switch only: 270 BTU/hr; combined switch + max. PoE devices: 1751 BTU/hr)
Voltage 100 - 127 / 200 - 240 VAC, rated
Current 4.9/2.5 A
Maximum power rating 39.5 W
Idle Power 22.8 W
Idle Power 382 W
Safety EN 60950/IEC 60950; CAN/CSA 22.2 No. 60950; EN 60825; UL 60950
Emissions FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Immunity
EN EN 55024, CISPR 24
ESD IEC 61000-4-2
Radiated IEC 61000-4-3
EFT/Burst IEC 61000-4-4
Surge IEC 61000-4-5
Conducted IEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptions IEC 61000-4-11
Harmonics IEC 61000-3-2
Flicker IEC 61000-3-3
Management Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line interface; Web browser
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
