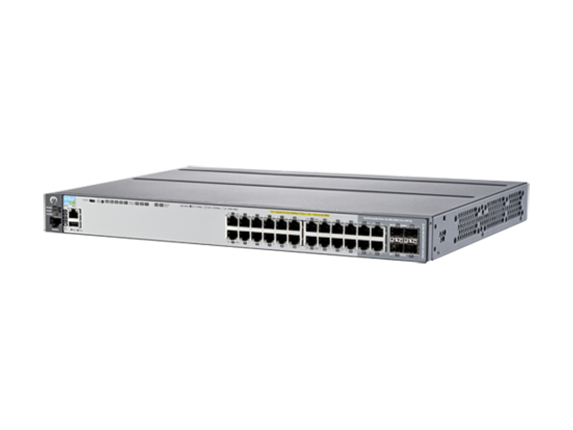

Aruba 2920 24G Switch

Part № : J9726AR

RENEW Part № : J9726AR

Availability : Call

  • Description
  • Specification
The Aruba 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB and branch office networks. A powerful ProVision ASIC delivers low latency, more packet buffering, and adaptive power consumption. This Basic Layer 3 switch series supports modular stacking, 10GbE, PoE+, static and RIP routing, Access OSPF routing, Tunneled node, ACLs, sFlow, and IPv6. The 2920 delivers a consistent wired/wireless user experience with advanced security and network management tools with Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support.

The Aruba 2920 Switch Series provides cost-effective pay as you grow modular stacking with a 2-port stacking module, support for up to four 10GBASE-T (or SFP+) uplinks and upgradeable power supplies so your network can quickly scale when needed. The robust Layer 3 feature set requires no licensing and includes a limited lifetime warranty.

Generic

I/O ports and slots 20 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T)
2 module slots
Additional ports and slots 1 stacking module slot
1 dual-personality (RJ-45 or USB micro-B)
1 USB 1.1
1 RJ-45 out-of-band management port
Power supplies 1 power supply slot
1 minimum power supply required
includes: 1 x J9739A (HPE X331 165W 100-240VAC to 12VDC Modular Power Supply)
Physical characteristics
Dimensions 17.42(w) x 13.23(d) x 1.75(h) in (44.25 x 33.6 x 4.45 cm) (1U height)
Weight 11.57 lb (5.25 kg)
Memory and processor Tri Core ARM1176 @ 625 MHz, 512 MB SDRAM, 1 GB flash MB; packet buffer size: 11.25 MB (6.75 MB dynamic egress + 4.5 MB ingress)
Performance
100 Mb Latency < 9.0 µs (FIFO 64-byte packets)
1000 Mb Latency < 3.3 µs (FIFO 64-byte packets)
10 Gbps Latency < 3.3 µs (FIFO 64-byte packets)
Throughput up to 95.2 Mpps
Switching capacity 128 Gbps
Routing table size 2048 entries (IPv4), 256 entries (IPv6)
MAC address table size 16000 entries
Environment
Operating temperature 32°F to 131°F (0°C to 55°C)
Operating relative humidity 15% to 95%, noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 95%, noncondensing
Altitude up to 10,000 ft (3 km)
Acoustic Power: 57 dB, Pressure: 41.4 dB
Electrical characteristics
Frequency 50/60 Hz
80plus.org Certification Silver
Maximum heat dissipation 198 BTU/hr (208.89 kJ/hr)
Maximum power rating 58 W
Idle power 26 W
Safety CE Labeled; EN 60825-1 Safety of Laser Products-Part 1; FCC Part 15, Subpart B; GOST; EU RoHS Compliant; EN 55022 Class A; EN 55024: 1998; C-Tick; ICES-003, Class A; VCCI Class A; IEC 60950-1 :Second Edition ; IEC 60825-1; EN62479:2010; CSA C22.2 No. 60950-1-07 2nd Edition; EN 60950- 1:2006+A11:2009+A1:2010+A12:2011; IEC 60950-1 (ed.2): am1
Emissions FCC part 15 Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Immunity
EN EN 55024, CISPR 24
ESD IEC 61000-4-2
Radiated IEC 61000-4-3
EFT/Burst IEC 61000-4-4
Surge IEC 61000-4-5
Conducted IEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8
Voltage dips and interruptions IEC 61000-4-11
Harmonics IEC 61000-3-2
Flicker IEC 61000-3-3
Management Aruba AirWave Network Management; Aruba Central; IMC – Intelligent Management Center; Commandline interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); SNMP manager; Telnet; RMON1; FTP; In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb)
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
