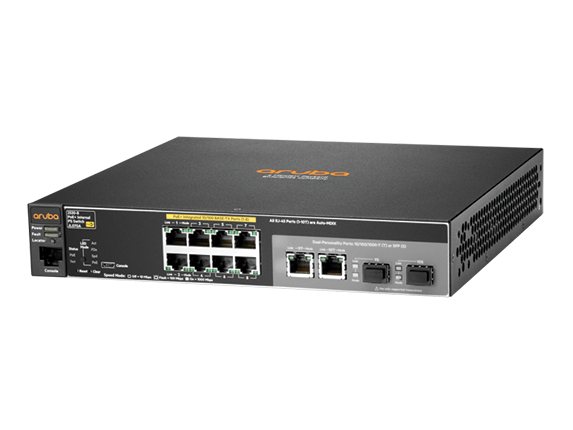

I/O ports and slots | 8 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX,
IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full
2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3
Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a
SFP slot (for use with SFP transceivers) ports |
Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
Physical
characteristics |
Dimensions |
10.00(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height) |
Weight |
1.8 lb (0.82 kg) |
|
Memory and processor |
Processor |
ARM9E @ 800 MHz, 128 MB flash; Packet buffer size: 3 MB
dynamically allocated, 256 MB DDR3 DIMM |
|
Mounting and enclosure M | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting |
Performance |
IPv6 Ready Certified |
|
100 Mb Latency |
< 1.3 µs (LIFO 64-byte packets) |
1000 Mb Latency |
< 1.3 µs (LIFO 64-byte packets) |
Throughput |
up to 4.1 Mpps (64-byte packets) |
Switching capacity |
5.6 Gbps |
MAC address table size |
16000 entries |
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C) |
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
Non-operating/Storage relative humidity |
15% to 90% @ 149°F (65°C), noncondensing |
Altitude |
up to 10,000 ft (3 km) |
Acoustic |
Power: 0 dB, Pressure: 0 dB |
|
Electrical characteristics |
Frequency |
50/60 Hz |
Maximum heat dissipation |
25 BTU/hr (26.38 kJ/hr) |
Voltage |
100 - 127 / 200 - 240 VAC, rated |
Current |
0.5 A |
Maximum power rating |
7.2 W |
Idle power |
4.5 W |
|
Safety | UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
Emissions | FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A |
Immunity |
Generic |
EN 55024, CISPR 24 |
EN |
EN 55024, CISPR 24 |
ESD |
IEC 61000-4-2 |
Radiated |
IEC 61000-4-3 |
EFT/Burst |
IEC 61000-4-4 |
Surge |
IEC 61000-4-5 |
Conducted |
IEC 61000-4-6 |
Power frequency magnetic field |
IEC 61000-4-8 |
Voltage dips and interruptions |
IEC 61000-4-11 |
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
Management | IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; outof-band
management (serial RS-232C or Micro USB); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet
Interface MIB |
Services | Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for
details on the service-level descriptions and product numbers. For details about services and response
times in your area, please contact your local Hewlett Packard Enterprise sales office |
| |
