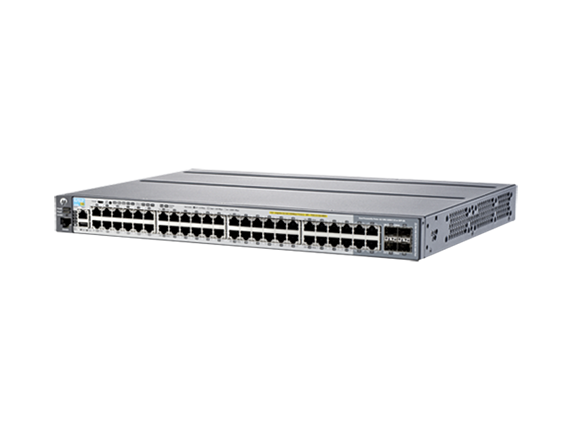

I/O ports and slots | 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX:
half or full; 1000BASE-T: full only
4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) 2 module slots |

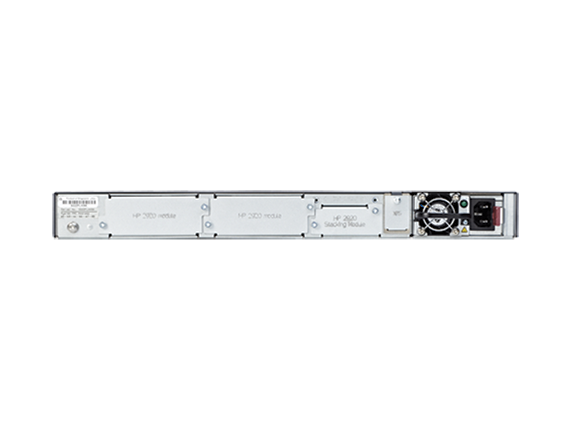

Additional ports and slots | 1 stacking module slot
1 dual-personality (RJ-45 or USB micro-B)
1 USB 1.1
1 RJ-45 out-of-band management port |
Power supplies | 1 power supply slot
1 minimum power supply required
includes: 1 x J9739A (HPE X331 165W 100-240VAC to 12VDC Modular Power Supply) |
Physical
characteristics |
Dimensions |
17.42(w) x 13.23(d) x 1.75(h) in (44.25 x 33.6 x 4.45 cm) (1U height) |
Weight |
12.86 lb (5.83 kg) |
|
Memory and processor | Tri Core ARM1176 @ 625 MHz, 512 MB SDRAM, 1 GB flash MB; packet buffer size: 11.25 MB (6.75 MB dynamic egress + 4.5 MB ingress) |
Performance |
100 Mb Latency |
< 9.0 µs (FIFO 64-byte packets) |
1000 Mb Latency |
< 3.2 µs (FIFO 64-byte packets) |
10 Gbps Latency |
< 3.2 µs (FIFO 64-byte packets) |
Throughput |
up to 130.9 Mpps |
Switching capacity |
176 Gbps |
Routing table size |
2048 entries (IPv4), 256 entries (IPv6) |
MAC address table size |
16000 entries |
|
Environment |
Operating temperature |
32°F to 131°F (0°C to 55°C) |
Operating relative humidity |
15% to 95%, noncondensing |
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
Nonoperating/Storage relative humidity |
15% to 95%, noncondensing |
Altitude |
up to 10,000 ft (3 km) |
Acoustic |
Power: 53 dB, Pressure: 38.3 dB |
|
Electrical characteristics |
Frequency |
50/60 Hz |
80plus.org Certification |
Gold |
Maximum heat dissipation |
399 BTU/hr (420.95 kJ/hr) |
Voltage |
100 - 240 VAC, rated |
Maximum power rating |
881 W |
Idle power |
52 W |
PoE power |
740 W PoE+ |
|
Safety | CE Labeled; EN 60825-1 Safety of Laser Products-Part 1; FCC Part 15, Subpart B; GOST; EU RoHS
Compliant; EN 55022 Class A; EN 55024: 1998; C-Tick; ICES-003, Class A; VCCI Class A; IEC 60950-1
:Second Edition ; IEC 60825-1; EN62479:2010; CSA C22.2 No. 60950-1-07 2nd Edition; EN 60950-
1:2006+A11:2009+A1:2010+A12:2011; IEC 60950-1 (ed.2): am1 |
Emissions | FCC part 15 Class A; VCCI Class A; EN 55022/CISPR 22 Class A |
Immunity |
EN |
EN 55024, CISPR 24 |
ESD |
IEC 61000-4-2 |
Radiated |
IEC 61000-4-3 |
EFT/Burst |
IEC 61000-4-4 |
Surge |
IEC 61000-4-5 |
Conducted |
IEC 61000-4-6 |
Power frequency magnetic field |
IEC 61000-4-8 |
Voltage dips and interruptions |
IEC 61000-4-11 |
Harmonics |
IEC 61000-3-2 |
Flicker |
IEC 61000-3-3 |
|
Management | Aruba AirWave Network Management; Aruba Central; IMC – Intelligent Management Center; Commandline
interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); SNMP
manager; Telnet; RMON1; FTP; In-line and out-of-band; Out-of-band management (serial RS-232c or
micro usb) |
Services | Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details
on the service-level descriptions and product numbers. For details about services and response times in
your area, please contact your local Hewlett Packard Enterprise sales office. |
| |
