Aruba 3810M 48G PoE+ 1-slot Switch

Part № : JL074AR

RENEW Part № : JL074AR

Availability : Call

  • Description
  • Specification

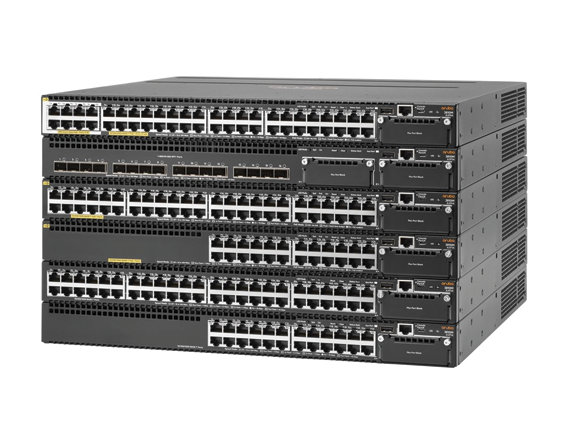

The Aruba 3810M Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, this advanced Layer 3 switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.

Full PoE+ provisioning available on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor. Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, dynamic segmentation, robust QoS and policy-based routing are included with no software licensing.

A powerful Aruba ProVision ASIC delivers performance, robust feature support, and value with flexible programmability for future applications. The 3810M is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support.

QuickSpecs

HPE Quickspecs Open Link

Generic

Included accessories 1 Aruba 3810 Switch Fan Tray (JL088A)
I/O ports and slots 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only; Ports 1 - 48 support MACSec
1 open module slot
Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module
Additional ports and slots 1 stacking module slot
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 dual-personality (RJ-45 or USB micro-B)
Power Supplies 2 power supply slots
1 minimum power supply required (ordered separately)
Fan Tray includes: 1 x JL088A
1 fan tray slot
Switch ships with 1 JL088A fan tray installed. Spares ordered separately.
Physical characteristics
Dimensions 17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height)
Weight 13.62 lb (6.18 kg)
Memory and processor P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card
Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal
Mounting and enclosure Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only
Performance
IPv6 Ready certified
1000 Mb Latency < 2.8 µs (FIFO 64-byte packets)
10 Gbps Latency < 1.8 µs (FIFO 64-byte packets)
40 Gbps Latency < 1.5 µs (FIFO 64-byte packets)
Throughput up to 190.5 Mpps (64-byte packets)
Routing/Switching capacity 320 Gbps
Switch fabric speed 338 Gbps
Routing table size 10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size 64000 entries
Environment
Operating temperature 32°F to 113°F (0°C to 45°C)
Operating relative humidity 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C), noncondensing
Altitude up to 10,000 ft (3 km)
Acoustic Power: 47 dB, Pressure: 29.4 dB
Primary Airflow Direction Front-to-side and front-to-rear
Electrical characteristics
Frequency 50/60Hz
Voltage JL086A PSU: 100-127/200-240 VAC
JL087A PSU: 110-127/200-240 VAC
Current JL086A PSU (Each): 5A/2.5A
JL087A PSU (Each): 8.5A/5A
Max/Idle Power Rating Switch+ 1 PSU) 135W/103W
Second PSU Power Adder 10W
Max/Idle Uplink Power Adder JL078A: 4W/3W
JL079A: 7W/3W
JL081A: 4W/3W
JL083A: 11W/4W
Maximum Heat Dissipation *(Max Case) 531.96
PoE Power (Max Possible) 1440W
Safety EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2
Emissions FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013
Immunity
Generic EN55022: 2010
EN EN55024: 2010
ESD IEC 61000-4-2
Radiated IEC 61000-4-3
EFT/Burst IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)
Surge IEC 61000-4-5; 1 kV/2 kV AC
Conducted IEC 61000-4-6; 3 V
Power frequency magnetic field IEC 61000-4-8; 1 A/m, 50 or 60 Hz
Voltage dips and interruptions IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods
Harmonics EN61000-3-2:2006 +A1:2009 +A2:2009 Class A
Flicker EN61000-3-3:2008
Management Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-ofband; Out-of-band management (serial RS-232c or micro usb)
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
