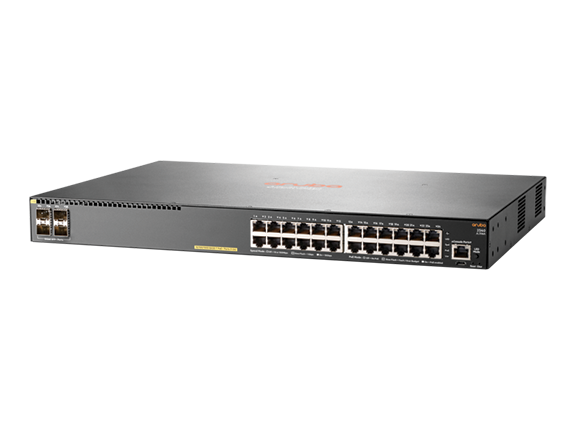

I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX:
half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports; PHY-less |
Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
Physical
characteristics |
Dimensions |
17.42(w) x 7.88(d) x 1.73(h) in (44.25 x 20.02 x 4.39 cm) (1U
height) |
Weight |
5.31 lb (2.41 kg) |
|
Memory and processor | Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB
4.5MB Ingress/7.875MB Egress, 4 GB eMMC |
Performance |
1000 Mbps Latency |
< 3.8 µs (64-byte packets) |
10 Gbps Latency |
< 1.6 µs (64-byte packets) |
Throughput |
up to 95.2 Mpps |
Switching capacity |
128 Gbps |
Routing table size |
2000 entries (IPv4), 1000 entries (IPv6) |
MAC address table size |
16384 entries |
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to
104F) up to 10000 Feet |
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet |
Nonoperating/Storage relative humidity |
15% to 95% @ 149°F (65°C) |
Acoustic |
Power: 49.7 dB, Pressure: 37.1 dB |
Primary Airflow direction |
Side-to-side |
|
Electrical characteristics |
Frequency |
50/60Hz |
Maximum heat dissipation |
100 BTU/hr (105.5 kJ/hr) |
Voltage |
100 - 127 / 200 - 240 VAC, rated |
Current |
0.6/0.4 A |
Maximum power rating |
29.3 W |
Idle Power |
19.5 W |
|
Safety | UL 60950-1 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-
1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2007 / IEC 60825-1:2007
Class 1 |
Emissions | VCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A ; EN 55022: 2010/CISPR-22, Class A |
Immunity |
EN |
EN 55024:2010/CISPR 24 |
ESD |
IEC 61000-4-2 |
Radiated |
IEC 61000-4-3 |
EFT/Burst |
IEC 61000-4-4 |
Surge |
IEC 61000-4-5 |
Conducted |
IEC 61000-4-6 |
Power frequency magnetic field |
IEC 61000-4-8 |
Voltage dips and interruptions |
IEC 61000-4-11 |
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
Management | Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface;
Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management
(serial RS-232C or micro USB) |
Services | Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for
details on the service-level descriptions and product numbers. For details about services and response
times in your area, please contact your local Hewlett Packard Enterprise sales office. |
| |
