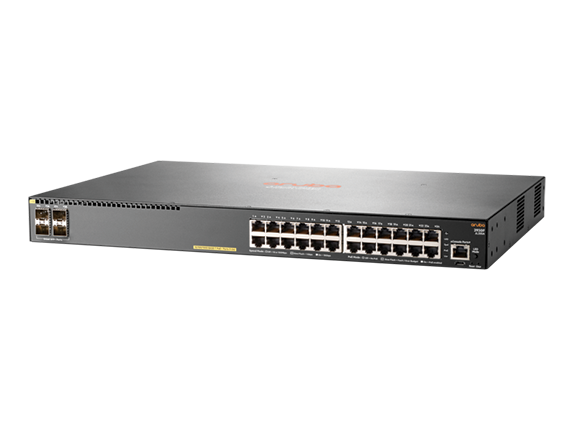

I/O ports and slots | 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type
100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASET/100BASE-TX:
half or full; 1000BASE-T: full only
4 SFP |
Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port |
Physical
characteristics |
Dimensions |
17.42(w) x 7.88(d) x 1.73(h) in (44.25 x 20.02 x 4.39 cm) (1U height) |
Weight |
5.31 lb (2.41 kg) |
|
Memory and processor | Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress,4 GB eMMC |
Performance |
1000 Mb Latency |
< 3.8 µs (64-byte packets) |
Throughput |
up to 41.7 Mpps |
Switching capacity |
56 Gbps |
Routing table size |
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP |
MAC address table size |
32768 entries |
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C); up to 5,000 Feet,
0°C to 40°C (32°F to 104°F) up to 10,000 Feet |
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
Nonoperating/Storage temperature |
-40°F to 158°F (-40°C to 70°C); up to 15,000 Feet |
Nonoperating/Storage temperature |
15% to 95% @ 149°F (65°C), noncondensing |
Acoustic (power and pressure) in decibals |
Power: 49.7 dB, Pressure: 37.1 dB |
Airflow direction |
Side to side |
|
Electrical characteristics |
Maximum heat dissipation |
100 BTU/hr (105.5 kJ/hr) |
Voltage |
100 - 127 / 200 - 240 VAC, rated |
Current |
0.6/0.4 A |
Maximum power rating |
29.3 W |
Idle power |
19.5 W |
Frequency |
50/60 Hz |
|
Safety | UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC
60950- 1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825- 1:2014 / IEC
60825-1:2014 Class 1 |
Emissions | EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A;
CNS 13438 |
Immunity |
EN |
EN 55024, CISPR 24 |
ESD |
IEC 61000-4-2 |
Radiated |
IEC 61000-4-3 |
EFT/Burst |
IEC 61000-4-4 |
Surge |
IEC 61000-4-5 |
Conducted |
IEC 61000-4-6 |
Power frequency magnetic field |
IEC 61000-4-8 |
Voltage dips and interruptions |
IEC 61000-4-11 |
Harmonics |
IEC 61000-3-2 |
Flicker |
IEC 61000-3-3 |
|
Management | Aruba AirWave Network Management; IMC – Intelligent Management Center; Command-line
interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band
management (serial RS-232C or micro USB) |
Services | Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services
for details on the service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local Hewlett Packard Enterpri |
| |
