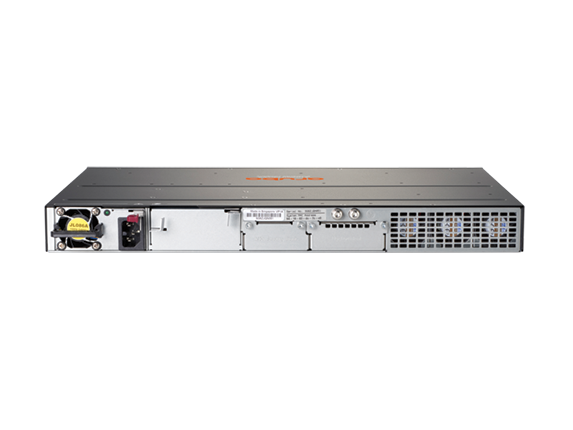

Aruba 2930M 48G PoE+ 1-slot Switch

Part № : JL322AR

RENEW Part № : JL322AR

Availability : Call

  • Description
  • Specification
The Aruba 2930M Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from cloud-based Aruba Central, you can quickly set up remote offices with little or no IT support.

A powerful Aruba ProVision ASIC delivers performance, robust feature support, and value with flexible programmability for future applications. High performance modular stacking for up to 10 switches provides simplicity, scalability with a pay as you grow approach. The 2930M supports 10GbE and 40GbE uplinks, dual modular power supplies, up to 1440 Watts of PoE+, HPE Smart Rate (IEEE 802.3bz), robust QoS, RIP, Access OSPF routing, dynamic segmentation, PIM, VRRP and IPv6 with no software licensing required.

The Aruba 2930M Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Deployment. The switches include a limited lifetime warranty.


HPE Quickspecs Open Link


I/O ports and slots 44 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+); Duplex: 10BASE?T/100BASE-TX:half or full;1000BASE-T:full only
4 Combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports
Additional ports and slots 1 Dual Personality (RJ-45 or USB Micro-B) serial console port
1 USB B port for uploading/ downloading files
1 100BASE-T Out of Band Management Port
1 Uplink Slot
1 Stacking Module Slot
2 Power Supply Slots (power supplies not included)
Physical characteristics
Dimensions 1.73" (Height) x 17.42" (Width) x 12.77" (Depth) (4.39cm x 44.25cm x 32.43cm)
Weight 10.25 lbs 4.65 kg
Memory and processor Dual Core ARM Cortex A9 @ 1016 MHz
Packet Buffer Size: 12.38 MB 4.5MB Ingress/7.875MB Egress
IPv6 Ready certified
10 Mbps Latency < 98.5us (FIFO 64 byte packets)
100 Mbps Latency <11.8us (FIFO 64-byte Packets)
1000 Mbps Latency < 3.1us (FIFO 64-byte packets)
10Gbps Latency <3.4us (FIFO 64-byte packets)
Throughput 112 Mpps
Stacking Performance 100 Gbps
Switching capacity 176 Gbps
Switching capacity (including Stacking) 278 Gbps
Routing table size 10000 entries (IPv4), 5000 entries (IPv6)
MAC address table size 32768 entries
Operating temperature 32? F to 131?F (0° C to 55° C) up to 5000ft, 32? F to 122?F (0° C to 50° C). Derate -1 degree C for every 1000 ft from 5000 ft to 10000 ft
Operating relative humidity 15%to 95% (Non-condensing) 10,000 ft
Nonoperating/Storage temperature -40°C to 70°C up to 15000 ft
Nonoperating/Storage relative humidity 90% at 65°C (non-condens- ing); 15,000 ft
Acoustic Sound Power LWaD=4.6 Bel, Sound Pressure LpAm, Bystander = 28.8 dB
Primary Airflow direction Front to Back
Electrical characteristics
Frequency 50/60Hz
Maximum heat dissipation 200 BTU/hr
216 kJ/hr
Voltage JL086A PSU: 100-127/200- 240 VAC
JL087A PSU: 110-127/200-240 VAC
Current JL086A PSU (each): 5A/2.5A
JL087A PSU (each): 8.5A/5A
Maximum power rating JL086A PSU (each): 470W
JL087A PSU (each): 860W
Idle Power 40W
PoE Power (Max Possible) 1440 Watts
Hibernate Power 7W
