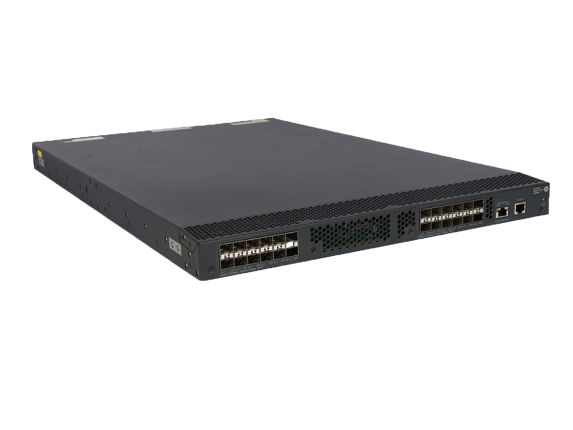

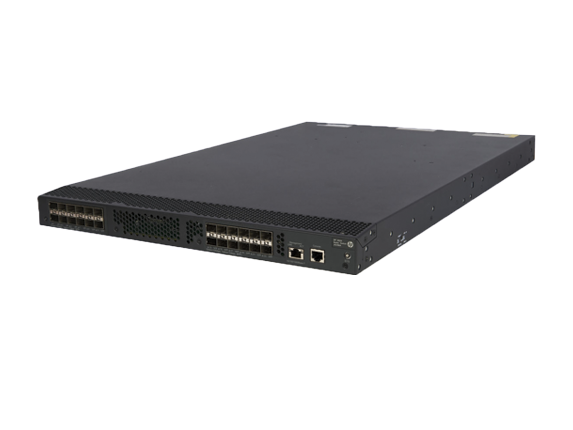

HPE FlexFabric 5920AF 24XG Switch

Part № : JG296AR

RENEW Part № : JG296AR

Availability : Call

  • Description
  • Specification
HPE FlexFabric 5920 Series switches are high density 10 GbE large buffer top of rack (ToR) data center switches. This model has 24x 10GbE / 1GbE SFP+ ports. Redundant power and replacable fan trays deliver highest availability. These switches are ideal for deployment at the server access layer of large enterprise data centers or for deployment at the data center core layer of medium sized enterprises. They support converged applications where bursty traffic and storage is involved. The FlexFabric product line offers modular core, aggregation, top of rack switching for data centers.


HPE Quickspecs Open Link


I/O ports and slots 24 fixed 1000/10000 SFP+ ports
Additional ports and slots 1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 USB 2.0
Power supplies 2 power supply slots
1 minimum power supply required (ordered separately)
Fan Tray 2 fan tray slots
The customer must order fan trays, as fan trays are not included with the switch. This system requires two same-direction airflow fan trays to function properly. The system should not be operated with only one fan tray for more than 24 hours. The system should not be operated without a fan tray for more than two minutes. The system should not be operated outside of the temperature range of 32°F (0°C) to 113°F (45°C). Failure to comply with these operating requirements may void the product warranty
Physical characteristics
Dimensions 17.32(w) x 25.98(d) x 1.72(h) in (43.99 x 65.99 x 4.37 cm)
Weight 28.66 lb (13 kg) shipping weight
Memory and processor 256 MB flash; Packet buffer size: 3.6 GB, 2 GB SDRAM
Latency < 1.7 µs (64-byte packets)
Throughput up to 367 Mpps
Routing/Switching capacity 480 Gbps
Routing table size 16000 entries (IPv4)
MAC address table size 128000 entries
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative humidity 10% to 90%, noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 5% to 95%, noncondensing
Acoustic Low-speed fan: 62.1 dB, High-speed fan: 76.7 dB
Electrical characteristics
Maximum heat dissipation 1249 BTU/hr (1317.7 kJ/hr)
Voltage 100 - 240 VAC, rated
-40 to -60 VDC, rated
(depending on power supply chosen)
Idle Power 343 W
Frequency 50/60 Hz
Safety UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Emissions VCCI Class A
EN 55022 Class A
ICES-003 Class A
ANSI C63.4 2003
EN 61000-3-2:2006
EN 61000-3-3:1995 +A1:2001+A2:2005
EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
Generic ETSI EN 300 386 V1.3.3
EN EN 55024:1998+ A1:2001 + A2:2003
ESD EN 61000-4-2; IEC 61000-4-2
Radiated EN 61000-4-3; IEC 61000-4-3
EFT/Burst EN 61000-4-4; IEC 61000-4-4
Surge EN 61000-4-5; IEC 61000-4-5
Conducted EN 61000-4-6; IEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8; EN 61000-4-8
Voltage dips and interruptions EN 61000-4-11; IEC 61000-4-11
Harmonics EN 61000-3-2, IEC 61000-3-2
Flicker EN 61000-3-3, IEC 61000-3-3
Management IMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP
Notes The customer must order a power supply, as the device does not come with one. At least one JC680A or JC681A is required.
The HPE FlexFabric 5900AF-48XG-4QSFP+ Switch is NEBS GR-1089-CORE compliant.
Services Refer to the Hewlett Packard Enterprise sales website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
