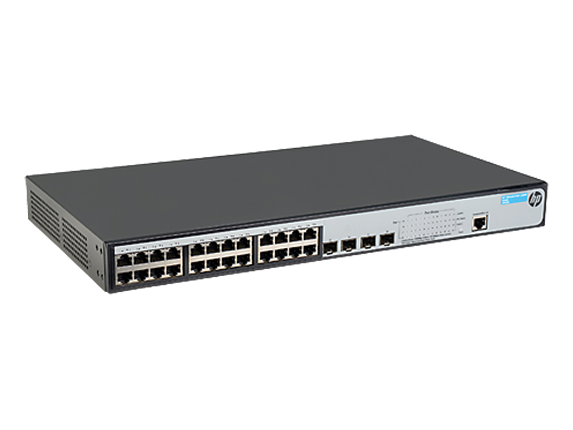

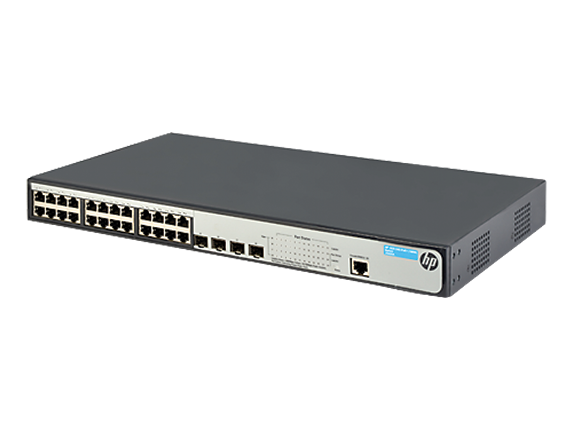

HPE 1910-24-PoE+ Switch

Part № : JG539AR

RENEW Part № : JG539AR

Availability : Call

  • Description
  • Specification
The HPE 1910 Switch Series consists of advanced smart-managed fixed-configuration Gigabit and Fast Ethernet switches designed for small businesses in an easy-to-administer solution. By utilizing the latest design in silicon technology, this series is one of the most power efficient in the market.

The series has 13 switches: eight Gigabit Ethernet and five Fast Ethernet models. The 8-, 16-, 24-, and 48-port 10/100/1000 models are equipped with additional Gigabit SFP ports for fiber connectivity; in addition to non-PoE models, the 8- and 24-port Gigabit Ethernet models are available with PoE (at two different levels) or without PoE. The 10/100 models are available with 8, 24 and 48 ports, and come

QuickSpecs

HPE Quickspecs Open Link

Generic

Ports 24 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Duplex: half or full
2 SFP dual-personality 1000 Mbps ports (IEEE 802.3ab Type 1000BASE-T)
1 RJ-45 console port to access limited CLI port
Supports a maximum of 24 autosensing 10/100 ports plus 2 1000BASE-X SFP ports, or a combination
Physical characteristics
Dimensions 17.32(w) x 9.37(d) x 1.73(h) in (44 x 23.8 x 4.4 cm) (1U height)
Weight 7.28 lb (3.3 kg)
Memory and processor
Module MIPS @ 500 MHz, 32 MB flash, 128 MB RAM; packet buffer size: 512 KB
Performance
100 Mb Latency < 5 µs
1000 Mb Latency < 5 µs
Throughput up to 6.6 Mpps (64-byte packets)
Routing/Switching capacity 8.8 Gb/s
Routing table size 32 entries (IPv4), 32 entries (IPv6)
MAC address table size 8192 entries
Environment
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative humidity 10% to 90%, noncondensing
Non-operating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity 10% to 95%, noncondensing
Electrical characteristics
Frequency 50/60 Hz
Voltage 100-240 VAC
Maximum power rating 220 W
PoE power 180 W
Safety IEC 60950-1; EN 60950-1; UL 60950-1 2nd Edition; CSA C22.2 No. 60950-1-07 2nd Edition
Emissions FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A
Management IMC - Intelligent Management Center; limited command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB
Notes The HP 1910-24G Switch (JE006A) was formerly sold as the 3Com Baseline Plus 2928 (3CRBSG2893) and may ship with this product labeling.
SFP ports and copper ports can work simultaneously, independent of each other to give a total of 28 Gigabit-capable ports.
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office
