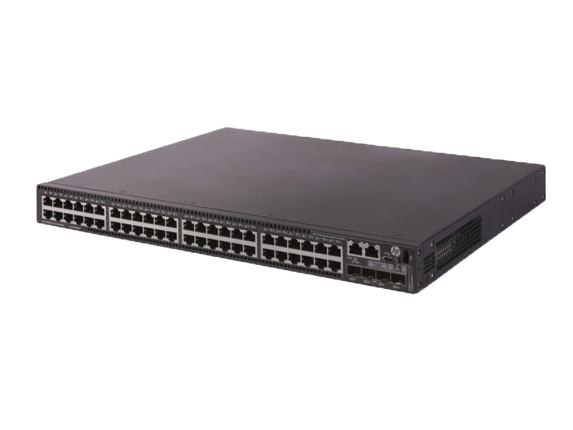

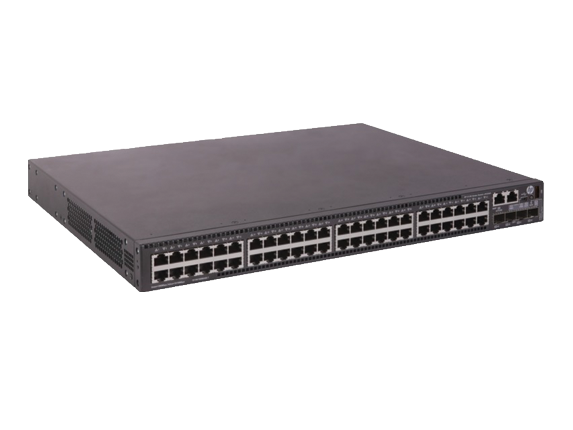

HPE FlexNetwork 5130 48G 4SFP+ 1-slot HI Switch

Part № : JH324AR

RENEW Part № : JH324AR

Availability : Call

  • Description
  • Specification
The HPE FlexNetwork 5130 HI Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) interfaces.

Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers.


HPE Quickspecs Open Link


I/O ports and slots 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec
4 SFP+ 10GbE ports
1 port expansion module slot
Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports, with optional module
Additional ports and slots 1 dual-personality (RJ-45 or mini USB) serial console port
1 RJ-45 out-of-band management port
1 USB 2.0
Power Supplies 2 power supply slots
1 minimum power supply required (ordered separately)
Fan Tray Airflow direction is Front (port side) to Back (power cord side)
Physical characteristics
Dimensions 17.32(w) x 18.11(d) x 1.72(h) in (43.99 x 46 x 4.37 cm) (1U height)
Weight 27.56 lb (12.5 kg) shipping weight
Memory and processor 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
IPv6 Ready Certified
1000 Mb Latency < 5 µs
10 Gbps Latency < 3 µs
Throughput up to 190.5 Mpps
Routing/Switching capacity 216 Gbps
Routing table size 4096 entries (IPv4), 2048 entries (IPv6)
MAC address table size 32768 entries
Operating temperature 32°F to 113°F (0°C to 45°C)
Operating relative humidity 10% to 90%, noncondensing
Non-operating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity 5% to 95%, noncondensing
Acoustic Low-speed fan: 57.6 dB, High-speed fan: 66.9 dB; ISO 7779
Electrical characteristics
Frequency 50/60 Hz
Maximum heat dissipation 2286 BTU/hr (2411.73 kJ/hr), Heat dissipation ranges from 256 BTU/hr to 6142 BTU/hr, depending on power supply configuration
Voltage 100 - 240 VAC, rated (90 - 264 VAC, max)
Maximum power rating 670 W
Idle power 75 W
PoE power 1440 W PoE+
Safety UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)
Emissions EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4- 2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000- 3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A
Generic EN 55024
ESD EN300 386
Management IMC - Intelligent Management Center; Command-line interface; SNMP manager
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office
