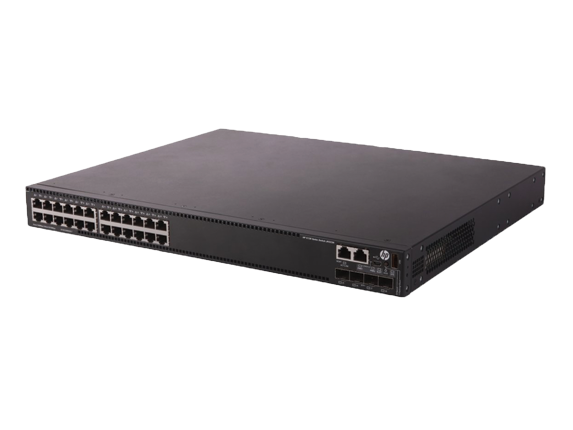

HPE FlexNetwork 5130 24G 4SFP+ 1-slot HI Switch

Part № : JH323AR

RENEW Part № : JH323AR

Availability : Call

  • Description
  • Specification
The HPE FlexNetwork 5130 HI Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) interfaces.

Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers.

QuickSpecs

HPE Quickspecs Open Link

Generic

I/O ports and slots 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASET/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec
4 SFP+ 10GbE ports
1 port expansion module slot
Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports, with optional module
Additional ports and slots 1 dual-personality (RJ-45 or mini USB) serial console port
1 RJ-45 out-of-band management port
1 USB 2.0
Power Supplies 2 power supply slots
1 minimum power supply required (ordered separately)
Fan Tray Airflow direction is Front (port side) to Back (power cord side)
Physical characteristics
Dimensions 17.32(w) x 14.17(d) x 1.72(h) in (44.00 x 36.00 x 4.37 cm) (1U height)
Weight 16.53 lb (7.5 kg) shipping weight
Memory and processor 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance
IPv6 Ready Certified
1000 Mb Latency < 5 µs
10 Gbps Latency < 3 µs
Throughput up to 154.8 Mpps
Routing/Switching capacity 168 Gbps
Routing table size 4096 entries (IPv4), 2048 entries (IPv6)
MAC address table size 32768 entries
Environment
Operating temperature 32°F to 113°F (0°C to 45°C)
Operating relative humidity 10% to 90%, noncondensing
Non-operating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity 5% to 95%, noncondensing
Acoustic Low-speed fan: 52.8 dB, High-speed fan: 66.7 dB; ISO 7779
Electrical characteristics
Frequency 50/60 Hz
Maximum heat dissipation 365 BTU/hr (385.08 kJ/hr), Ranges from 167 BTU/hr to 392 BTU/hr, depending on power supply configuration
Voltage 100 - 240 VAC, rated (90 - 264 VAC, max)
-48 to -60 VDC, rated (-36 to -72 VDC, max)
(depending on power supply chosen)
Maximum power rating 107 W
Idle power 55 W
PoE power 740 W PoE+
Safety UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)
Emissions EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4- 2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000- 3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A
Immunity
Generic EN 55024
ESD EN300 386
Management IMC - Intelligent Management Center; Command-line interface; SNMP manager
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office
