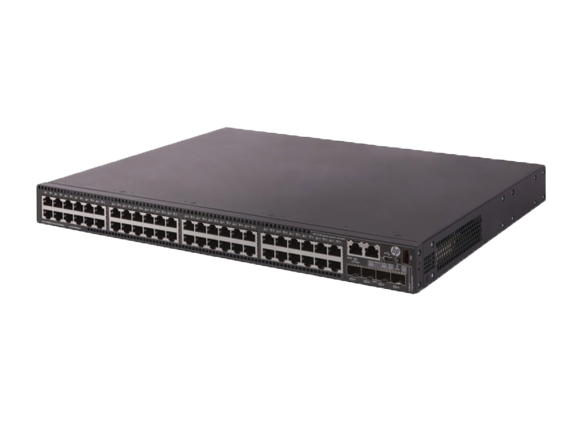

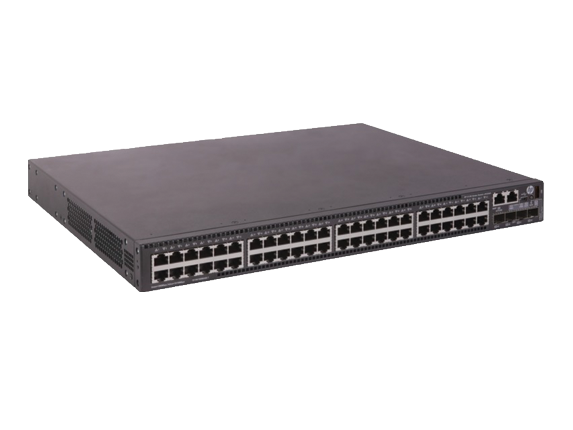

HPE FlexNetwork 5130 48G 4SFP+ EI Switch

Part № : JG934AR

RENEW Part № : JG934AR

Availability : Call

  • Description
  • Specification
The HPE FlexNetwork 5130 EI Switch Series comprises Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) interfaces.

Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers.


HPE Quickspecs Open Link


I/O ports and slots 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full;
1000BASE-T: full only
4 SFP+ fixed 1000/10000 SFP+ ports
Additional ports and slots 1 RJ-45 serial console port
Physical characteristics
Dimensions 17.32(w) x 10.24(d) x 1.72(h) in (44 x 26 x 4.36 cm) (1U height)
Weight 11.02 lb (5 kg)
Memory and processor 1 GB SDRAM, 512 MB flash; packet buffer size: 3 MB
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
IPv6 Ready Certified
1000 Mb Latency < 5 µs
10 Gbps Latency < 3 µs
Throughput 130.9 Mpps
Routing/Switching capacity 176 Gbps
Routing table size 512 entries (IPv4), 256 entries (IPv6)
MAC address table size 16384 entries
Operating temperature 23°F to 113°F (-5°C to 45°C)
Operating relative humidity 10% to 90%, noncondensing
Non-operating/Storage temperature 40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity 5% to 95%, noncondensing
Acoustic Low-speed fan: 38.4 dB, High-speed fan: 47.0 dB; ISO 7779
Electrical characteristics
Frequency 50/60 Hz
Maximum heat dissipation 130/153 BTU/hr (137.15/161.42 kJ/hr), For AC powered units. For DC powered units heat dissipation is 130 BTU/hr min, 171 BTU/hr max
Voltage 100 - 240 VAC
-48 to -60 VDC
Current 10 A
Maximum power rating 45 W
Idle power 38 W
Safety UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Emissions EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4- 2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000- 3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A
Generic EN 55024
ESD EN300 386
Management IMC - Intelligent Management Center; Command-line interface; SNMP manager
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office
