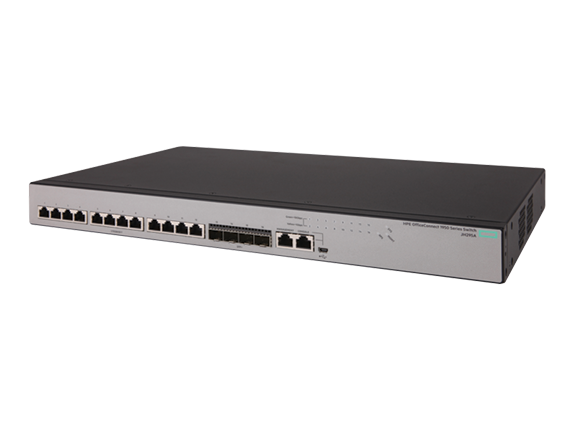

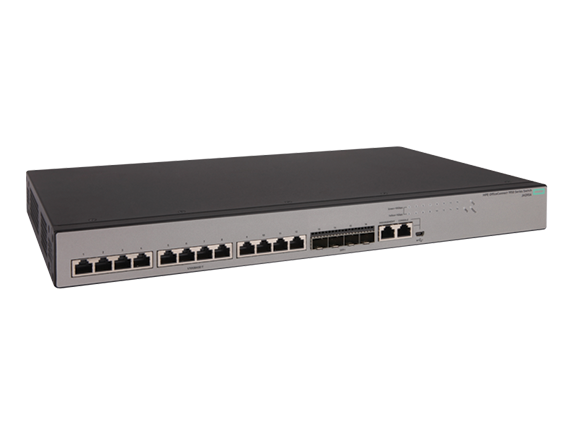

HPE OfficeConnect 1950 12XGT 4SFP+ Switch

Part № : JH295AR

RENEW Part № : JH295AR

Availability : Call

  • Description
  • Specification
The HPE OfficeConnect 1950 Switch Series includes five switches: New to the series is a 16-port 10-Gigabit aggregation switch that has 12 10GBASE-T and 4 SFP+ ports, which is ideal as the core of a high performance workgroup or small business network. Additional series models have Gigabit access ports with 10-Gigabit uplinks, including two standard and two PoE+ models in 24- and 48-port configurations. The access switches each have two 10GBASE-T ports supporting copper- based Category 6A-based cabling, and two 10G SFP+ ports for fiber connectivity. The PoE+ models both have a PoE power budget of 370 W to power up PoE/PoE+ compliant client devices.


HPE Quickspecs Open Link


I/O ports and slots 12 RJ-45 1/10GBASE-T ports
4 SFP+ fixed 1000/10000 SFP+ ports
Additional ports and slots 1 dual-personality (RJ-45 or Mini USB) console port to access limited CLI port
1 RJ-45 out-of-band management port
Physical characteristics
Dimensions 17.32(w) x 6.3(d) x 1.73(h) in (44 x 16 x 4.4 cm) (1U height)
Weight 8.07 lb (3.66 kg)
Memory and processor Cortex-A9 @ 1.25 MHz, 512 MB flash; Packet buffer size: 2 MB, 1 GB SDRAM
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
100 Mb Latency < 5 µs
1000 Mb Latency < 5 µs
10 Gbps Latency < 1.5 µs
Throughput up to 238 Mpps (64-byte packets)
Routing/Switching capacity 320 Gbps
Routing table size 512 entries (IPv4), 256 entries (IPv6)
MAC address table size 16384 entries
MTBF (years) 81.8
Operating temperature 32°F to 113°F (0°C to 45°C)
Operating relative humidity 10% to 90%, noncondensing
Non-operating/Storage temperature 40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity 5% to 95%, noncondensing
Altitude up to 16,404 ft (5 km)
Acoustic Low-speed fan: 48.1 dB, High-speed fan: 59.8 dB; ISO 7779 Dual speed fan
Electrical characteristics
Frequency 50/60 Hz
Voltage 100 - 240 VAC, rated
Maximum power rating 75 W
Safety UL 60950; IEC 60950-1; EN 60950-1; GB 4943.1
Emissions FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A
Management IMC - Intelligent Management Center; Limited command-line interface; Web browser; SNMP manager; HTTPS; RMON1; FTP; Supported by HP IMC and generic SNMP management platforms. Refer to documentation for MIB support details.
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office
