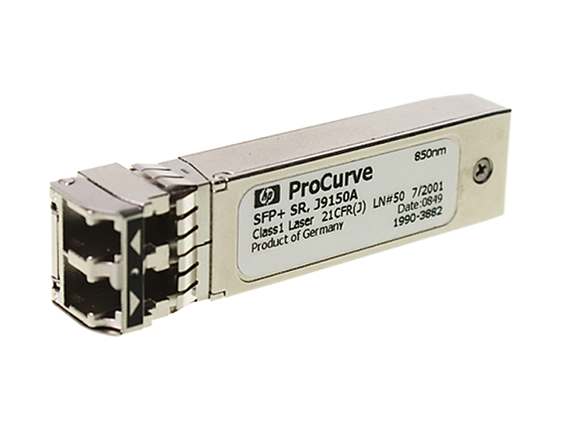

HPE X132 10G SFP+ LC SR Transceiver

Part № : J9150AR

RENEW Part № : J9150AR

Availability : Call

  • Description
  • Specification
HPE transceivers and cables are the critical fabrics that bond the data center infrastructure together. Tested for 100% compatibility with HPE adapter cards and switches, Hewlett Packard Enterprise provides ProLiant Server interoperability. These cost-effective transceiver and cable solutions are tuned to match various speed, form factors, distances, and signal transduction media.

QuickSpecs

HPE Quickspecs Open Link

Generic

Ports 1 LC 10-GbE port (IEEE 802.3ae Type 10Gbase-SR); Duplex: full only
Connectivity
Connector type LC
Wavelength 850 nm
Physical characteristics
Dimensions 2.19(d) x 0.54(w) x 0.47(h) in. (5.57 x 1.38 x 1.19 cm)
Weight 0.04 lb. (0.02 kg)
Transceiver form factor SFP+
Environment
Operating temperature 32°F to 158°F (0°C to 70°C)
Operating relative humidity 0% to 85%, noncondensing
Non-operating/Storage temperature -40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity -40°F to 185°F (-40°C to 85°C)
Altitude up to 10,000 ft. (3 km)
Electrical characteristics
Power consumption typical 0.6 W
Power consumption maximum 0.8 W
Cabling Cable type:
62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively; Maximum distance:
  • 2-26m with 62.5 µm multimode cable @ 160 MHz*km
  • 2-33m with 62.5 µm multimode cable @ 200 MHz*km
  • 2-66m with 50 µm multimode cable @ 400 MHz*km
  • 2-82m with 50 µm multimode cable @ 500 MHz*km
  • 2-300m with 50 µm multimode cable @ 2000 MHz*km
Cable length 2-300m
Fiber type Multi Mode
Notes For fiber patch cords, use Ultra Physical Contact (UPC) surface termination/polish. Angled Physical Contact (APC) is not recommended.
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office
