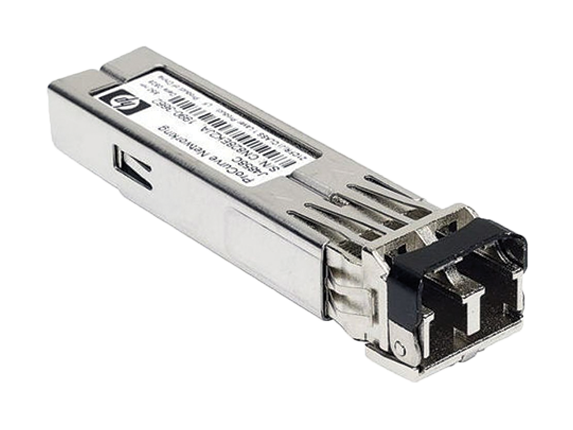

HPE X121 1G SFP LC LX Transceiver

Part № : J4859CR

RENEW Part № : J4859CR

Availability : Call

  • Description
  • Specification
HPE transceivers and cables are the critical fabrics that bond the data center infrastructure together. Tested for 100% compatibility with HPE adapter cards and switches, Hewlett Packard Enterprise provides ProLiant Server interoperability. These cost-effective transceiver and cable solutions are tuned to match various speed, form factors, distances, and signal transduction media.

QuickSpecs

HPE Quickspecs Open Link

Generic

Ports 1 LC 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX); Duplex: full only
Physical characteristics
Dimensions 2.24(d) x 0.54(w) x 0.486(h) in. (5.69 x 1.37 x 1.23 cm)
Weight 0.04 lb. (0.02 kg)
Environment
Operating temperature 32°F to 158°F (0°C to 70°C)
Operating relative humidity 0% to 85%, noncondensing
Non-operating/Storage temperature -40°F to 212°F (-40°C to 100°C)
Non-operating/Storage relative humidity -40°F to 203°F (-40°C to 85°C)
Altitude up to 10,000 ft. (3 km)
Cabling Type:
Either single mode or multimode; 62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low metal content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a, respectively; Low metal content, single-mode fiber-optic, complying with ITU-T G.652 and ISO/IEC 793-2 Type B1;
Maximum distance:
  • 2-550 m (multimode 62.5 µm core diameter, 500 MHz*km bandwidth)
  • 2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth
  • 2-550 m (multimode 50 µm core diameter, 400 MHz*km bandwidth)
  • 2-550 m (multimode 50 µm core diameter, 500 MHz*km bandwidth)
  • 2-10,000 m (single-mode fiber
Notes A mode conditioning patch cord may be needed in some multimode fiber installations.
Wavelength: 1310nm
Power Consumption: < 500mW Typical
Services Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office
